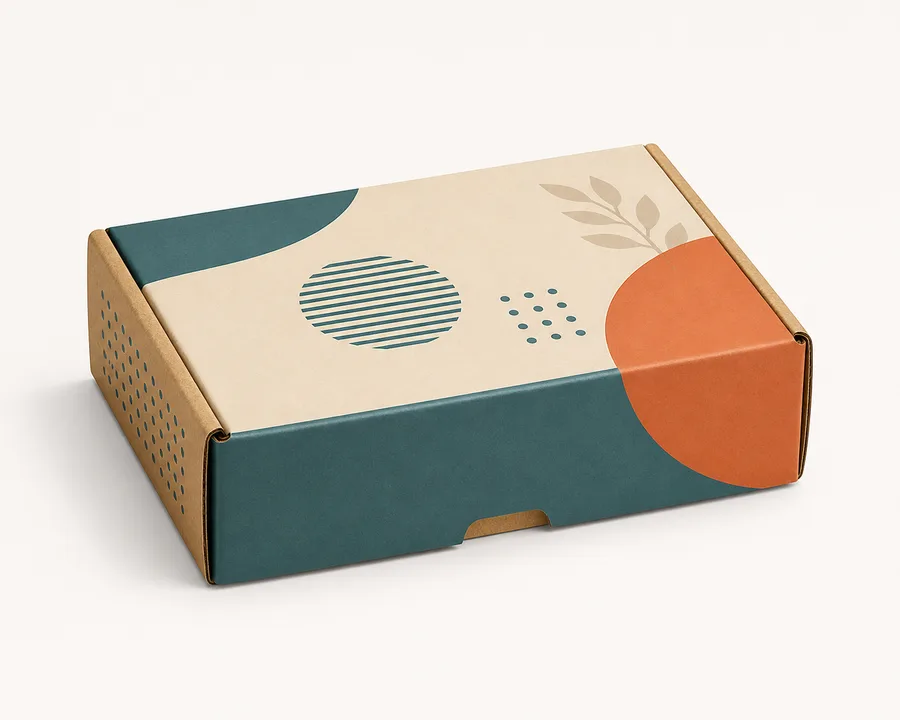

FEFCO 0400
Roll-end tuck mailer
Rolled sidewalls and a front tuck create a tidy opening with dependable protection for lighter goods.
Best for
- T-shirts & shirts
- Scarves & socks
- Skincare gift sets
CORRUGATED STRUCTURE REFERENCE
Corrugated Dieline Library
Start with a proven structure, then have our factory team review it against your product dimensions, weight and order requirements.
Find the right structure in three steps
- 1
Choose the application
Narrow the library by mailer, tray, display or specialty pack.
- 2
Review the structure
Compare opening, support and packing requirements.
- 3
Get an engineering review
Confirm dimensions, flute and crease compensation with the factory.
Box style catalog

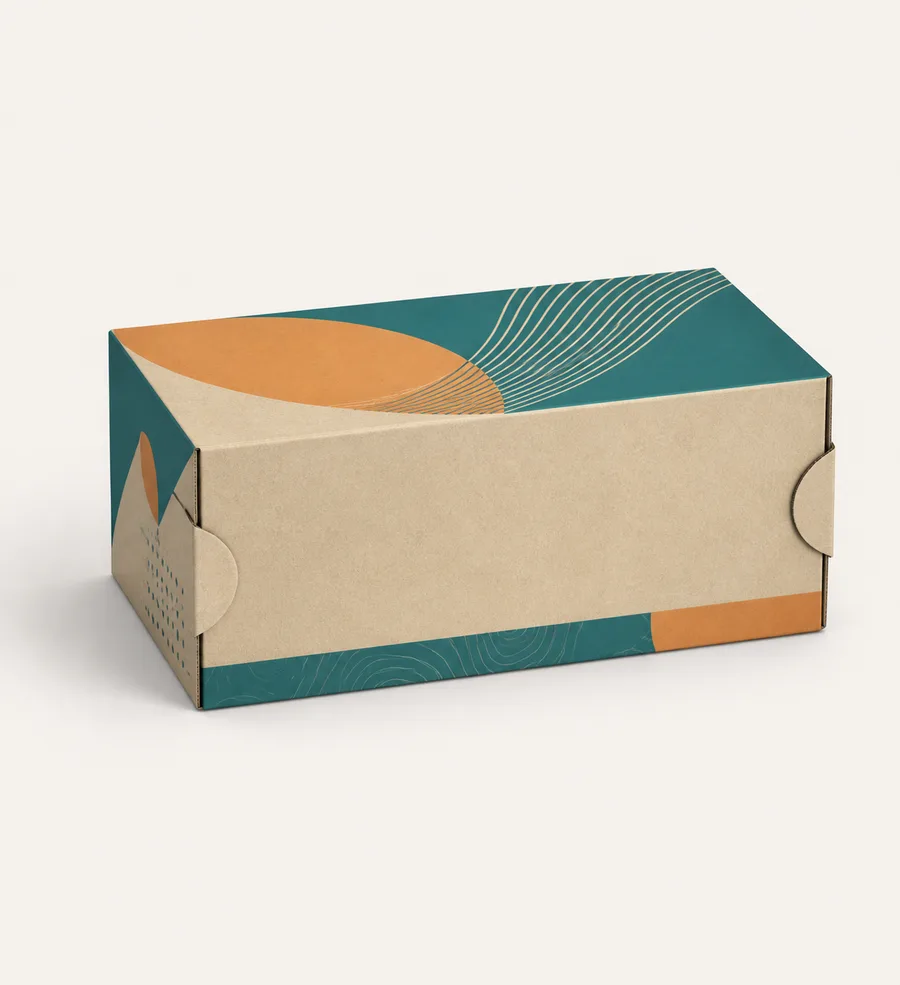

FEFCO 0426
Wing-lock mailer
Wing tabs interlock with the front edge to resist opening in transit and support tape-free packing.
Best for
- Phone cases
- Chargers
- Wireless earbuds
FEFCO 0427
Double side-lock mailer
Twin side locks distribute closure load for a stable pack through repeated e-commerce handling.
Best for
- Cable sets
- Smartwatch accessories
- Shaving care sets
FEFCO 0427.1
Reinforced lock mailer
Wider locks and layered walls improve compression resistance for denser premium orders.
Best for
- Fastener kits
- Hand-tool accessories
- Mechanical repair kits

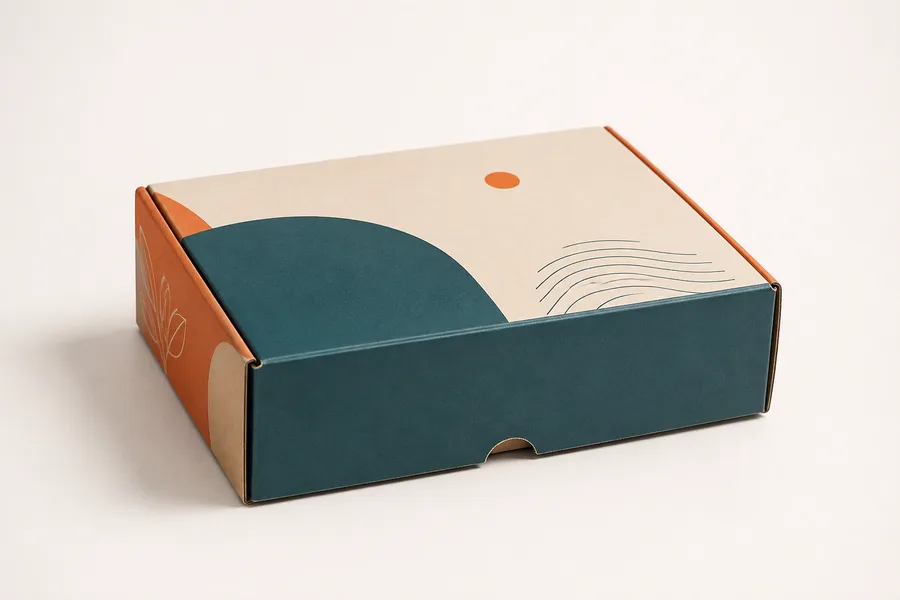

FEFCO 0429
Front-tuck e-commerce box
A long front tuck gives a clear closure for efficient packing and convenient customer re-closing.
Best for
- Lipstick & makeup
- Lingerie & accessories
- Notebooks & cards

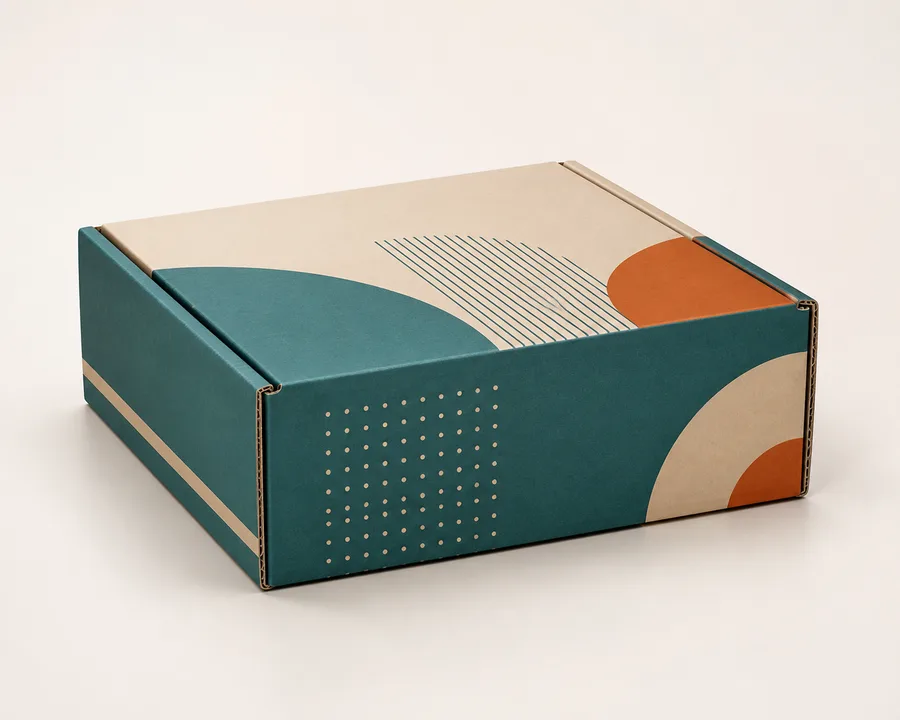

FEFCO 0430
Double-wall mailer
Double sidewalls add edge and corner cushioning where higher stacking strength is needed.
Best for
- Hardcover books
- Ceramic mugs
- Glassware sets

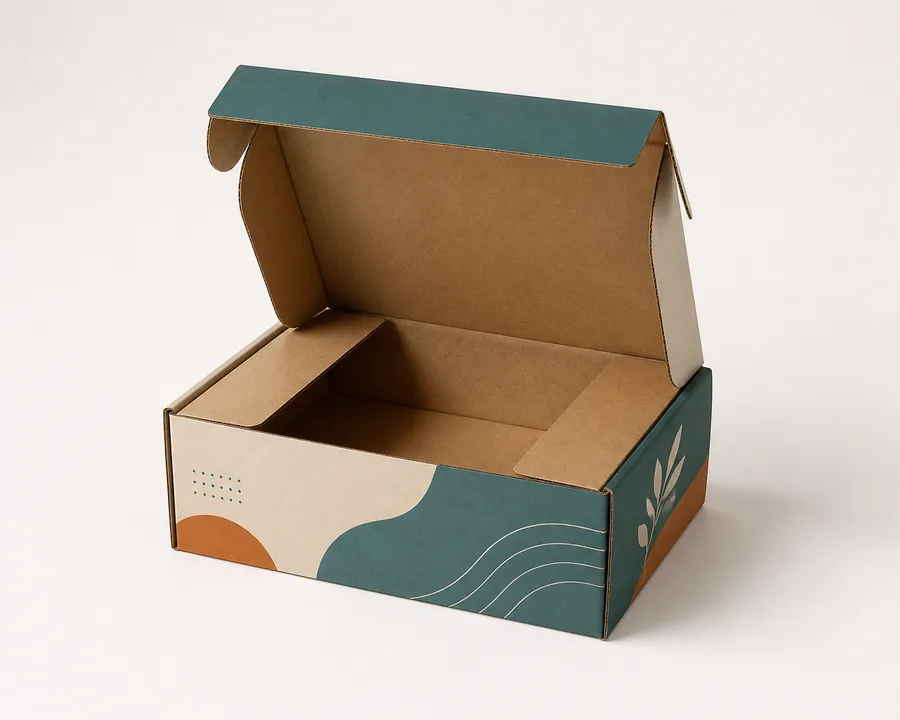

FEFCO 0431
Dust-flap mailer
Extended dust flaps cover side gaps for a cleaner arrival of small or cleanliness-sensitive products.
Best for
- Individually packed pastries
- Tea gift sets
- Towels & textiles

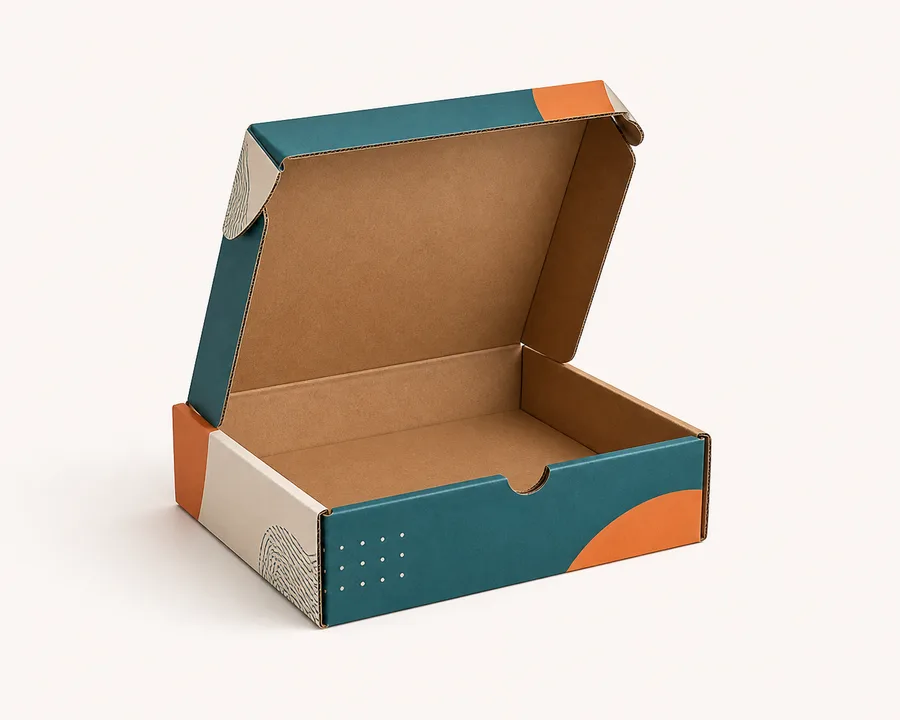

FEFCO 0475
Reinforced hinged mailer
A continuous hinged lid and reinforced front wall balance presentation with transit protection.
Best for
- Tablet accessories
- Smart-home kits
- Premium skincare sets

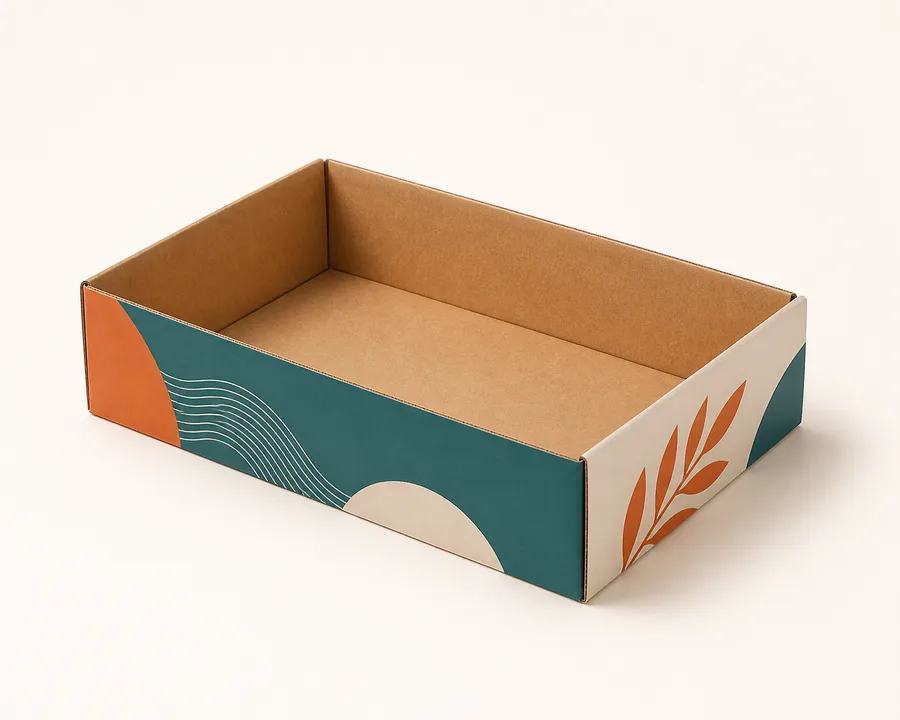

FEFCO 0401
One-piece folding tray
A simple one-piece blank folds on four sides for quick manual tray packing.
Best for
- Packed bread
- Canned foods
- Yogurt cups

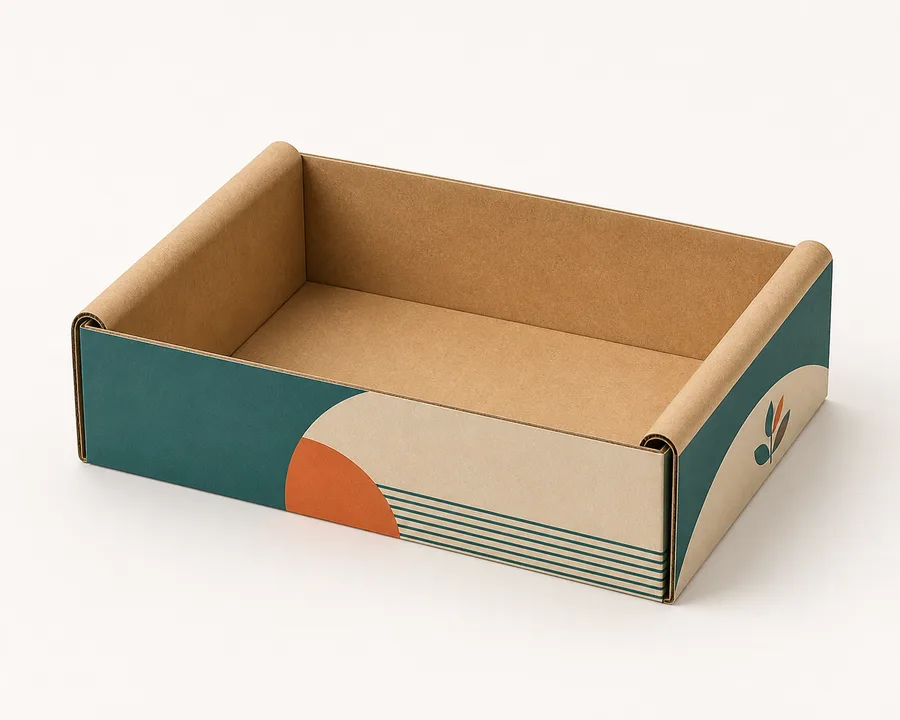

FEFCO 0403
Roll-end sidewall tray
Rolled sidewalls create smooth, substantial edges for accessible display and product protection.
Best for
- Bottled drinks
- Coffee bags
- Snack pouches

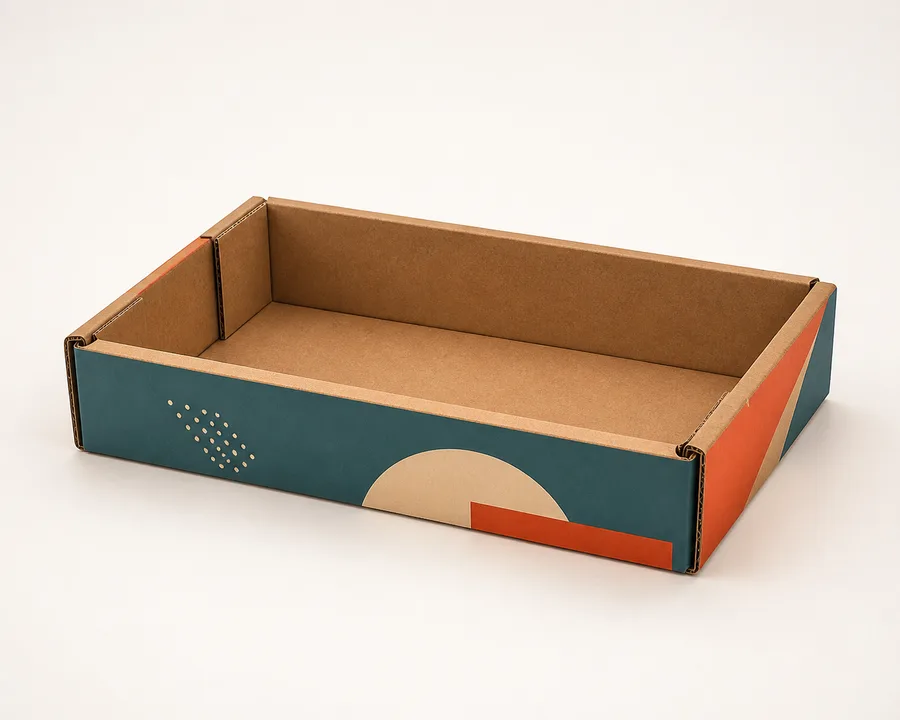

FEFCO 0405
Reinforced-edge tray
Multi-layer folded edges reinforce the perimeter for heavier products and stacked handling.
Best for
- Glass beverage bottles
- Cooking-oil bottles
- Metal cans

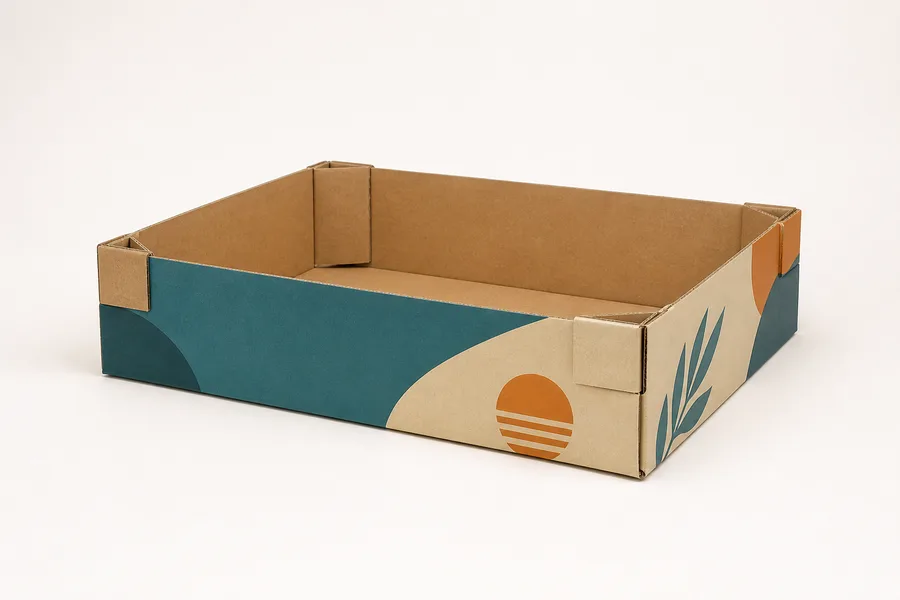

FEFCO 0421
Self-locking corner tray
Corner tabs lock during forming so the tray stays square without adhesive.
Best for
- Apples & pears
- Tomatoes & peppers
- Packed pastries

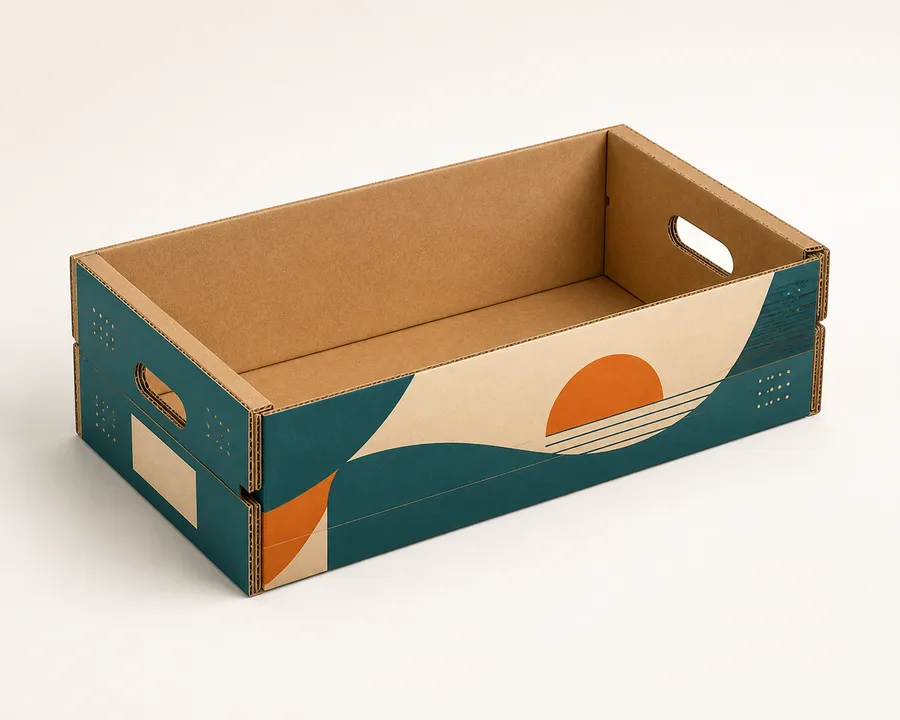

FEFCO 0422
Double-wall tray
Double longitudinal walls improve side support for neatly arranged, weight-concentrated products.
Best for
- Canned drinks
- Bottled sauces
- Glass condiment bottles

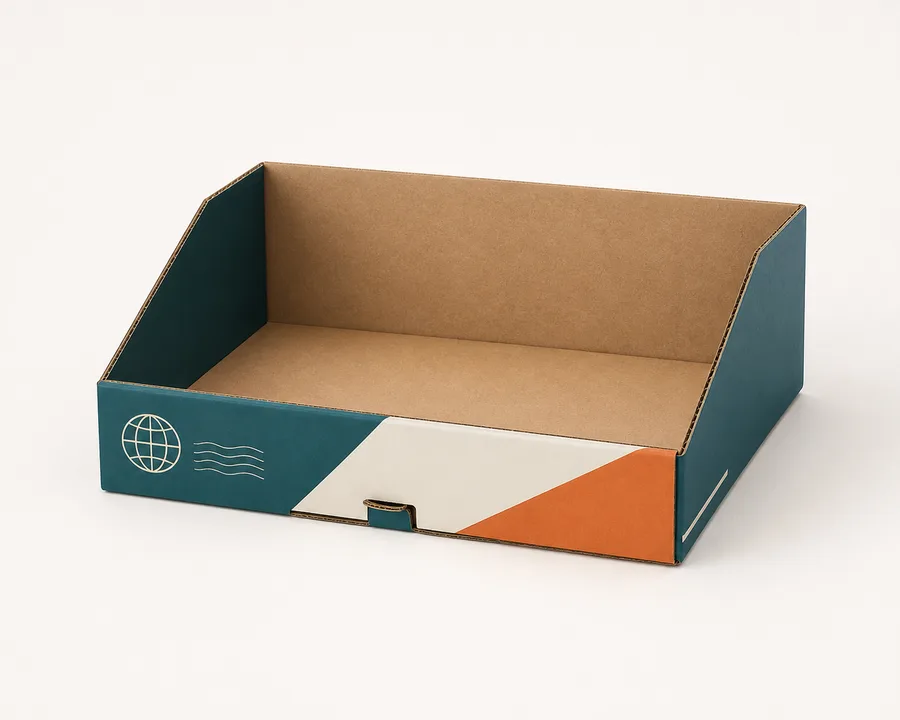

FEFCO 0433
Front-lock tray
A locking front edge stabilizes the load while the open top supports shelving and replenishment.
Best for
- Seasoning sachets
- Coffee stick packs
- Sheet-mask pouches

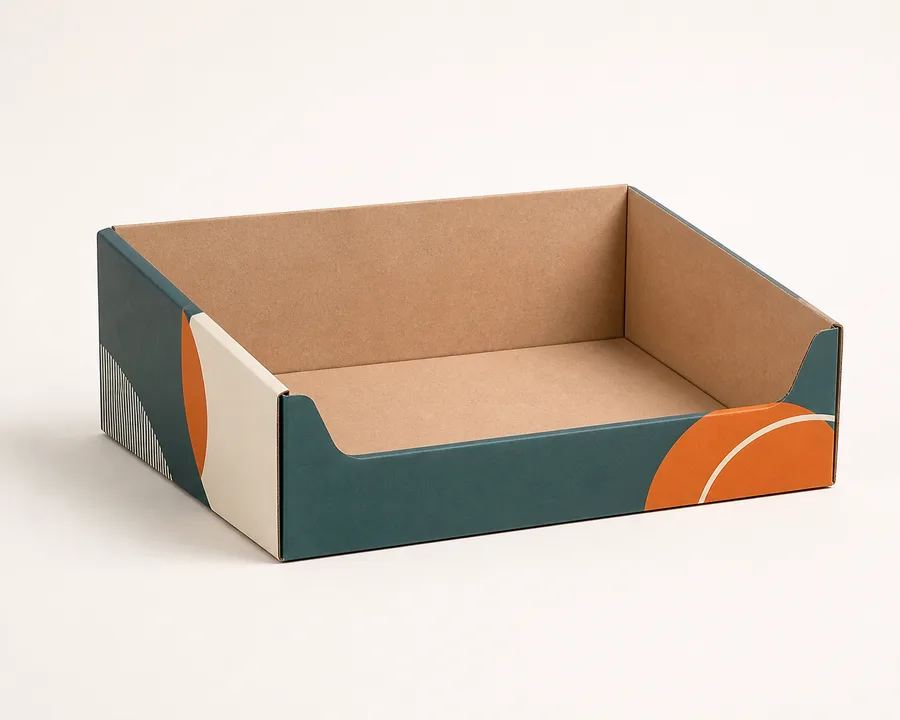

FEFCO 0457
Reinforced display tray
Reinforced perimeter walls carry multiple units while a low front edge keeps products visible and accessible.
Best for
- Chocolate bars
- Nut pouches
- Travel-size shampoo

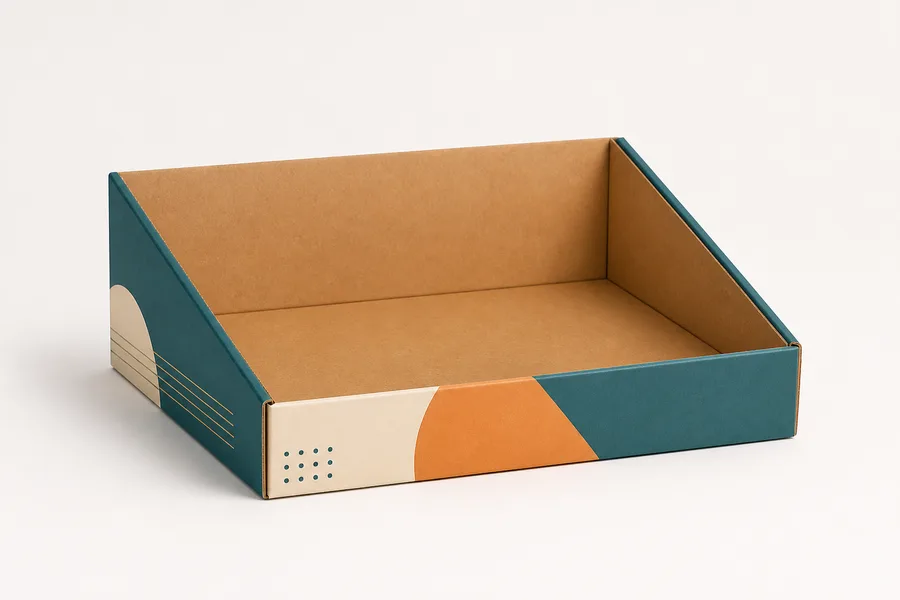

FEFCO 0459.1
Bevelled display tray
Bevelled sidewalls open the sightline while retaining lateral support for the displayed range.
Best for
- Snack bags
- Candy pouches
- Pens

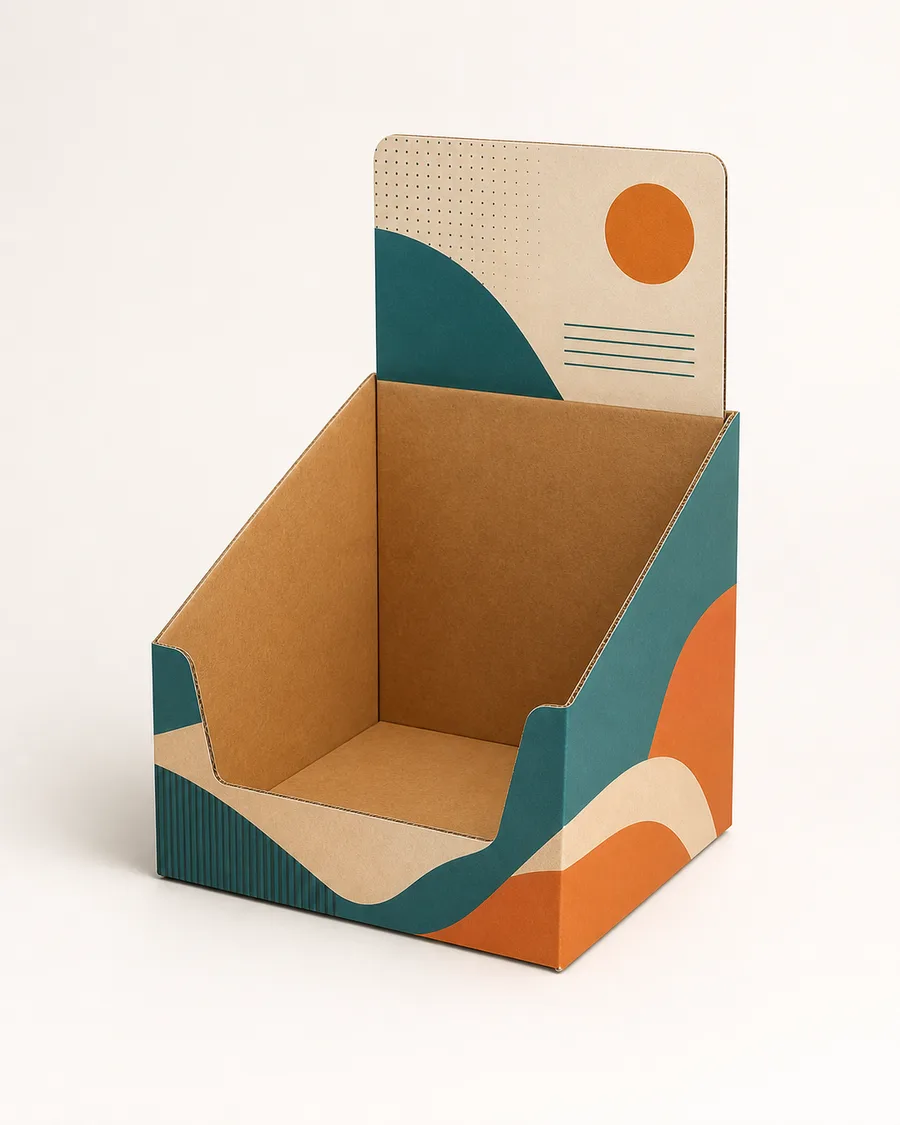

FEFCO 0462
Hinged display box
The lid protects in transit, then folds into a display surface to reduce store setup.
Best for
- Candy cartons
- Chewing gum
- Charging cables

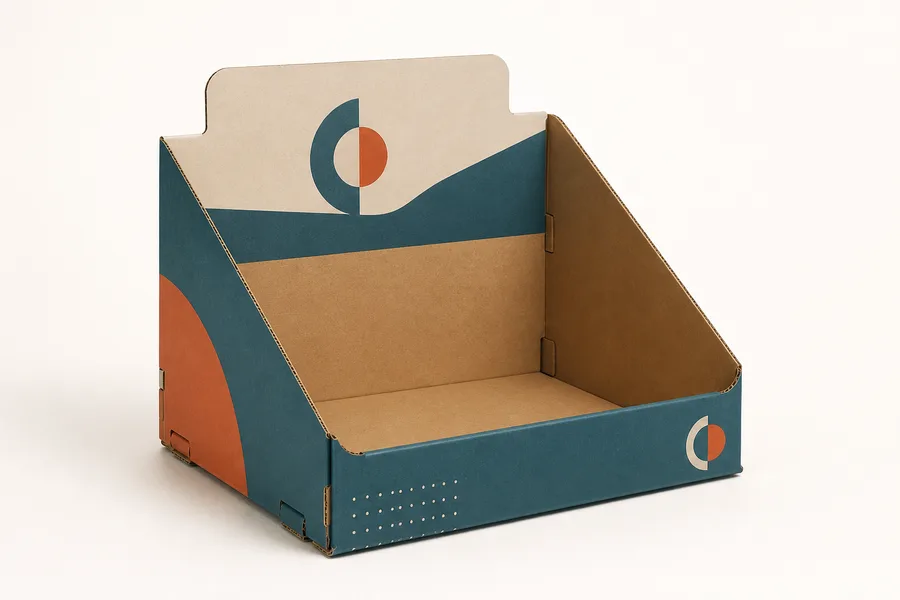

FEFCO 0465
Locking display box
Multiple locks keep the display stable through frequent product access and replenishment.
Best for
- Nut pouches
- Sheet-mask pouches
- Lip balms

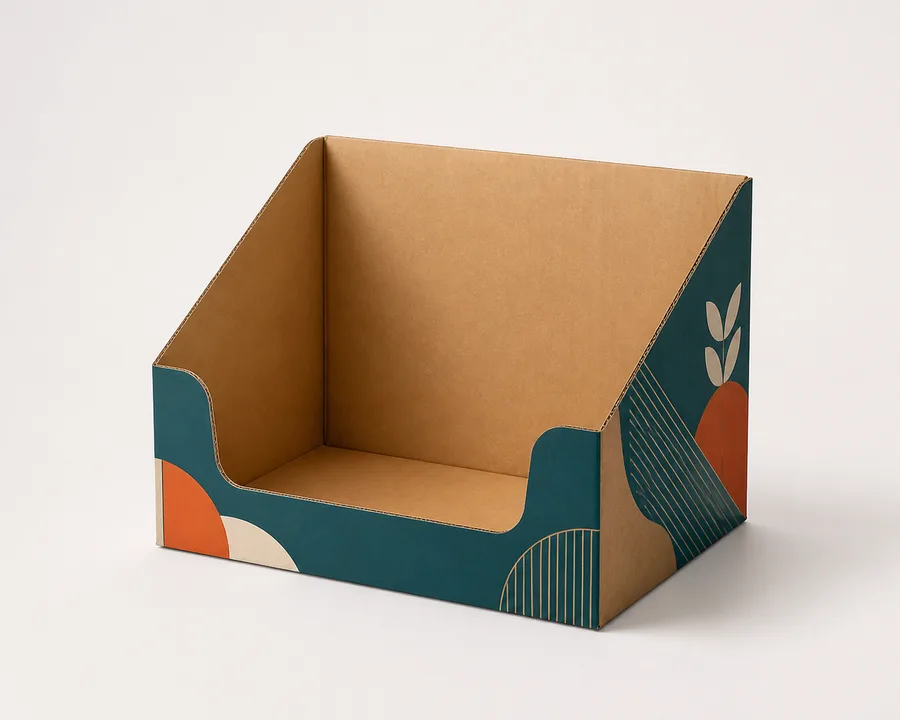

FEFCO 0801
Open-front retail display
A broad front opening exposes product labels while the base and sidewalls keep units contained.
Best for
- Bottled juice
- Canned coffee
- Snack bags

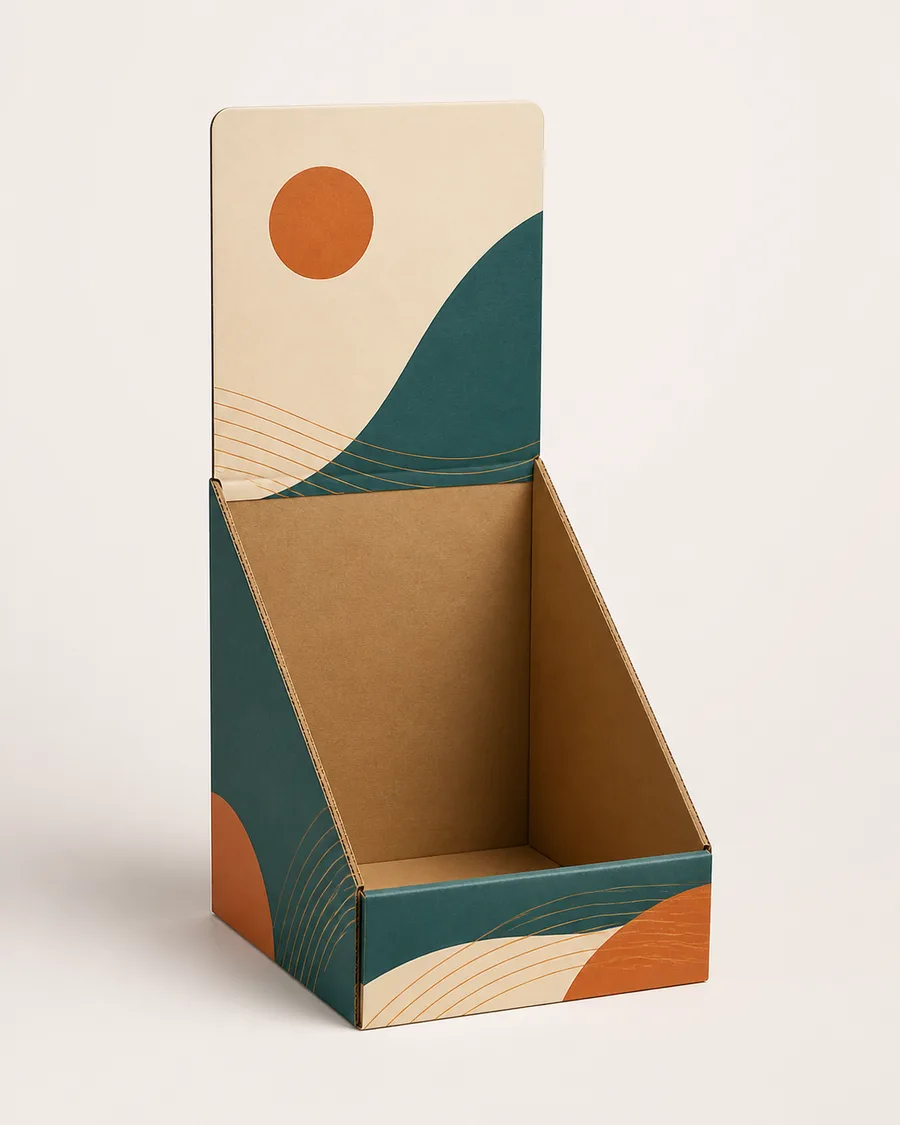

FEFCO 0815
High-back display
A tall back panel adds branding space while the low front keeps products easy to identify on shelf.
Best for
- Vitamin bottles
- Eye-drop cartons
- Skincare minis

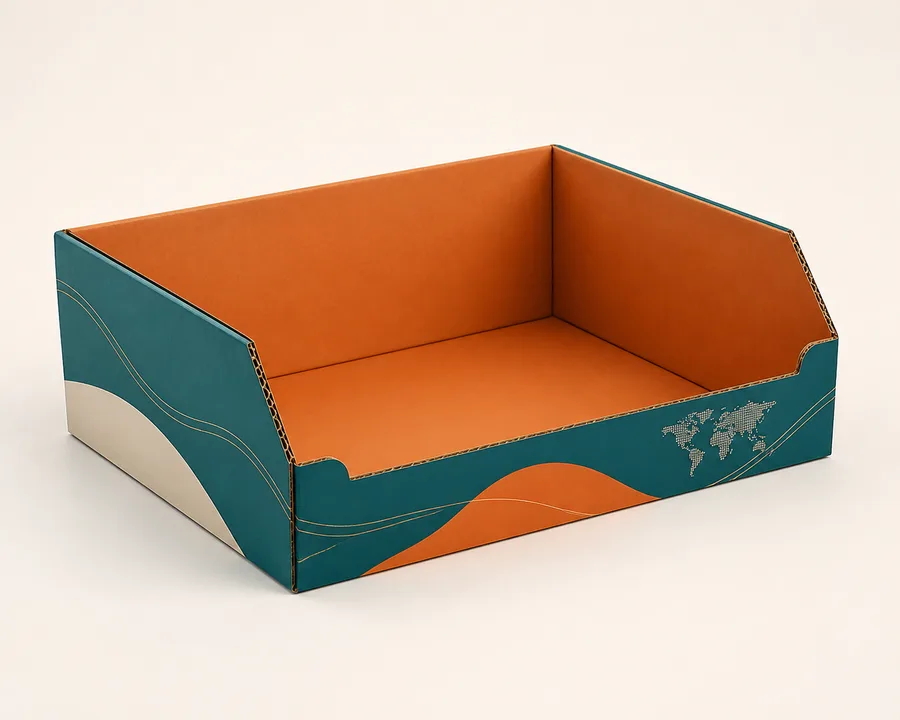

FEFCO 0435
E-commerce display tray
Transit protection converts into a grouped display so the assortment can move directly into the sales setting.
Best for
- Snack subscription sets
- Livestream beauty kits
- New-product sample sets

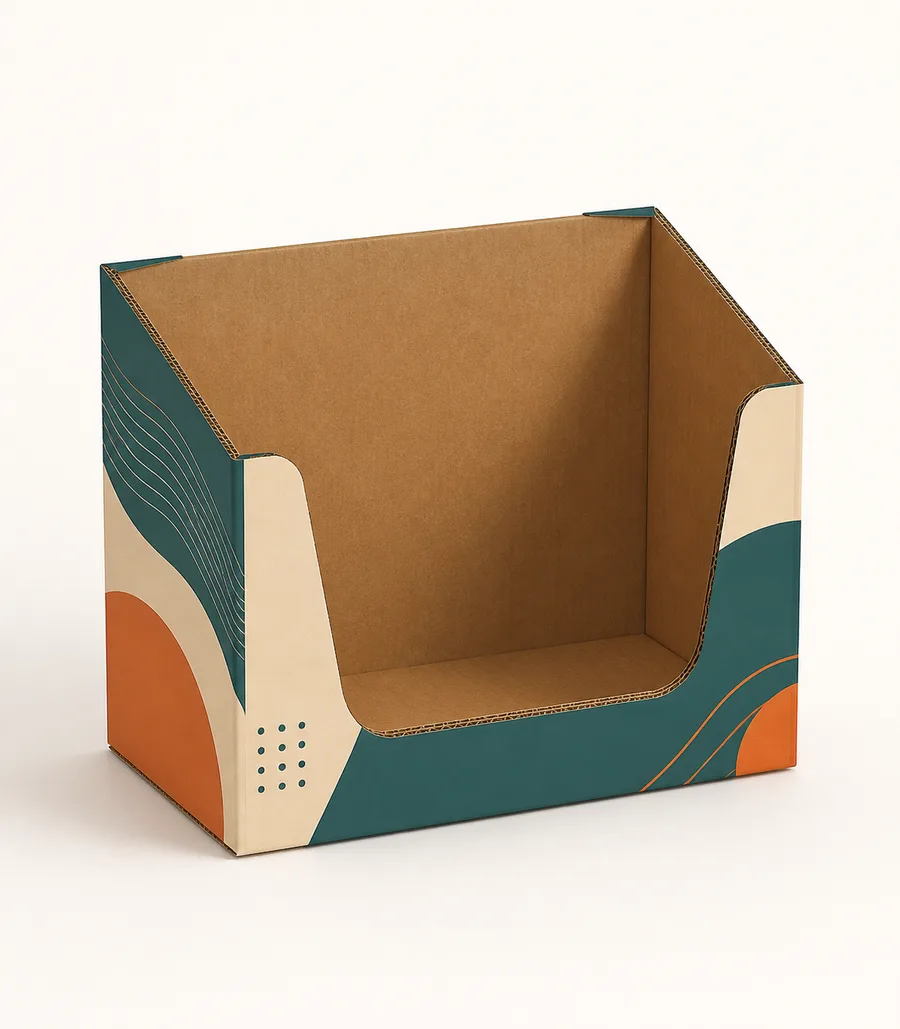

FEFCO 0436
Shelf-ready display
The shipper converts quickly to a shelf opening for case-to-shelf placement and orderly presentation.
Best for
- Bottled sauces
- Cereal cartons
- Coffee bags

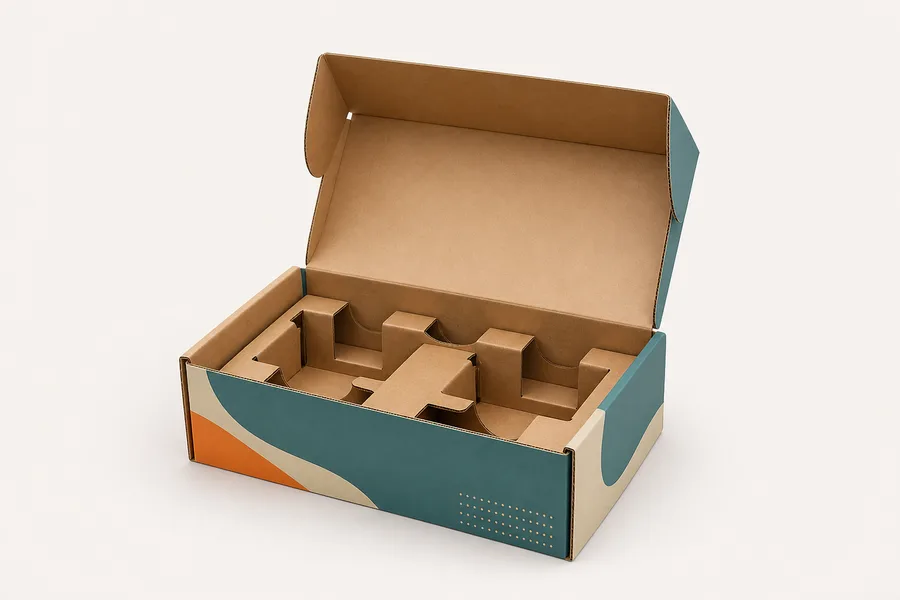

FEFCO 0440
Combination protective pack
The main shell and folded inserts work together to locate irregular or fragile products in protected zones.
Best for
- Measuring instruments
- Glassware
- Medical-device accessories

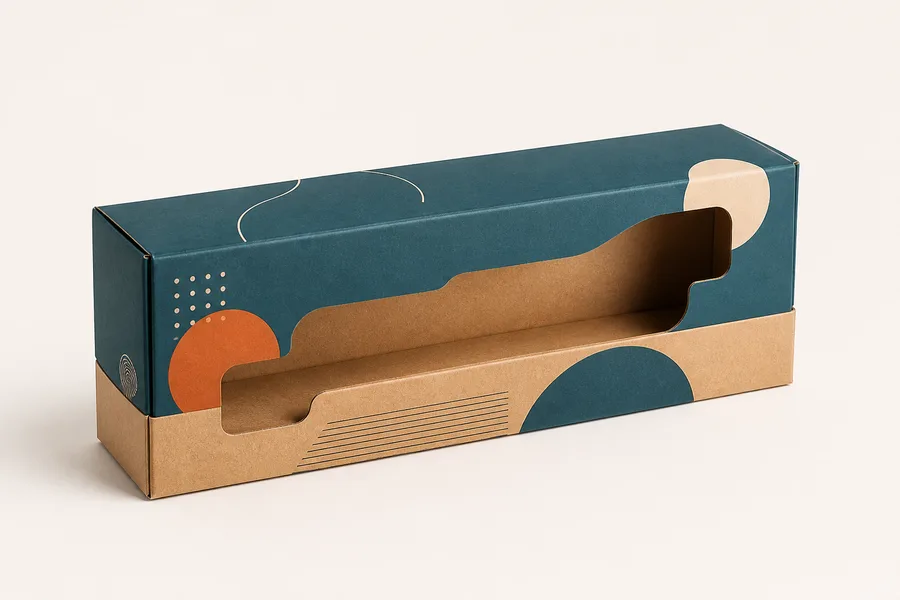

FEFCO 0441
Two-piece die-cut pack
Two die-cut components overlap to tailor coverage around long or unusually shaped products.
Best for
- Lighting components
- Long shaft parts
- Umbrellas
Not sure where to start?
Share your product size, packed weight and packing needs. Our factory team will recommend a suitable structure.
Structural reference note
Structural reference only. Final dimensions, board thickness, crease compensation and manufacturability require engineering review. Suitable trays can carry fresh produce; liners, food-contact paper, moisture treatment, and primary packaging conditions require factory engineering and compliance review.
